Loading Ramps Features & Benefits
- New stronger rung design
- Reinforced bottom and top rungs
- Enhanced beam strength
- Patented extruded double T-rail with interlocking rungs
- 3 different connection methods
- Length of reinforcement differs on every ramp model
- Low to the ground bottom rung
- CE and TUV certification
- EN 1999-1-1:2010 & NA:2010-12
Digga Ezi-Loada Ramp Specifications
| Description | Product Code | Beam | Width (Int) | Width (Ext) | Weight |
|---|---|---|---|---|---|
| Standard | LR152530 | 64mm | 255 mm | 300 mm | 14kg |
| Standard | LR233030 | 100mm | 300 mm | 360 mm | 23kg |
| Standard | LR303030 | 115 mm | 300 mm | 360 mm | 26kg |
| Standard | LR303535 | 120 mm | 350 mm | 410 mm | 36kg |
| Standard | LR353535 | 125 mm | 350 mm | 410 mm | 37kg |
| Standard | LR403545 | 140 mm | 450 mm | 510 mm | 46kg |
| Standard | LR473545 | 155 mm | 450 mm | 510 mm | 46kg |
| Standard | LR473550 | 155 mm | 500 mm | 560 mm | 51kg |
| Standard | LR593545 | 150 mm | 450 mm | 510 mm | 53kg |
| Universal | LRU593550 | 150 mm | 500 mm | 560 mm | 60kg |
| Universal | LRU663550 | 170 mm | 500 mm | 560 mm | 61kg |
| Universal | LRU823550 | 180 mm | 500 mm | 560 mm | 77kg |
See all ramps here.

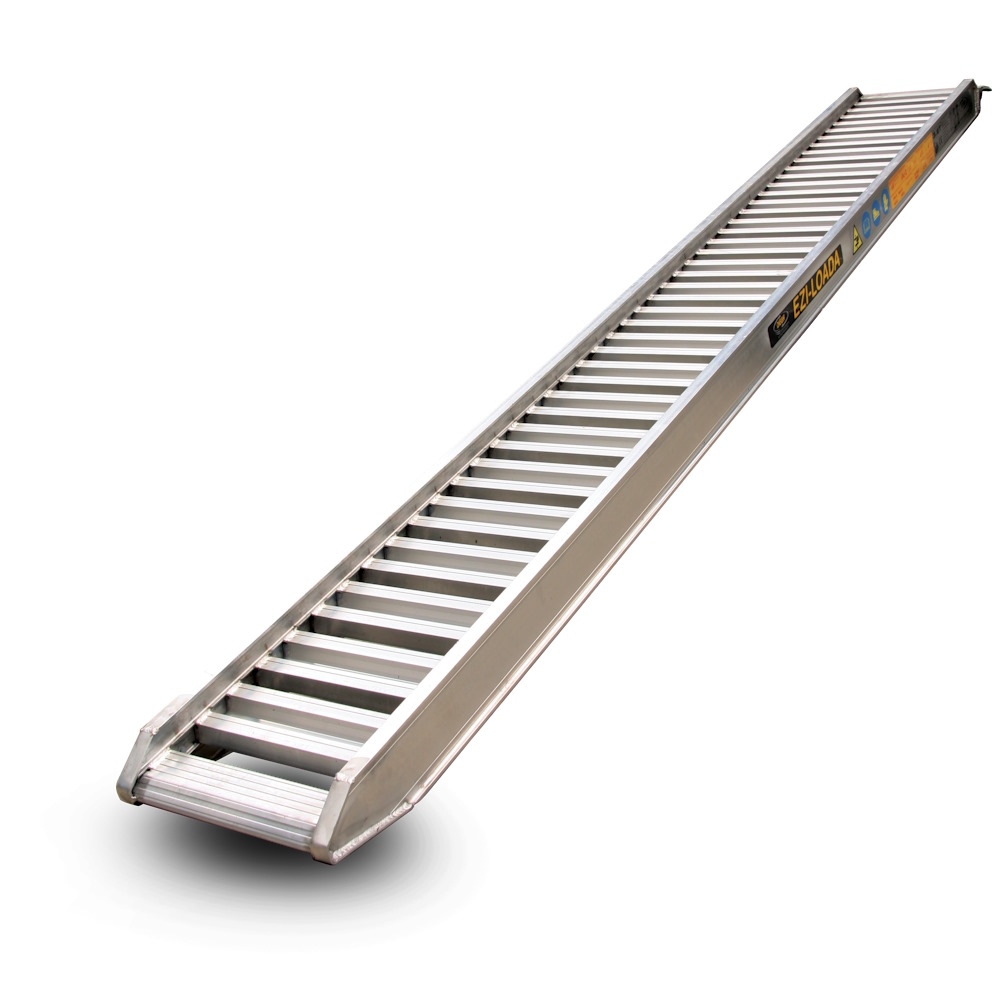

Standard Loading Ramp
- Rung design prevents clogging up with mud, stones, and other debris reducing the risk of tyre/track slippage
- Suitable for rubber tyres and rubber track machines
- Unique rung design cleans the wheels/tracks as the machine climb the ramp, minimising debris taken onto the truck
Ramp Capacity By Machine Wheelbase Length
| Standard Range | Capacity @ Wheelbase | Length |
|---|---|---|
| LR152530 | 1.5 tonne @ 1 m | 2500 mm |
| LR233030 | 2.2 tonne @ 1 m | 3000 mm |
| LR303030 | 3.7 tonne @ 1.5 m | 3000 mm |
| LR303535 | 3.4 tonne @ 1.5 m | 3500 mm |
| LR353535 | 4.0 tonne @ 1.5 m | 3500 mm |
| LR403545 | 4.0 tonne @ 1.5 m | 3500 mm |
| LR473545 | 4.7 tonne @ 2.0 m | 3500 mm |
| LR473550 | 4.7 tonne @ 1.5 m | 3500 mm |
| LR593545 | 6.2 tonne @ 2.0 m | 3500 mm |

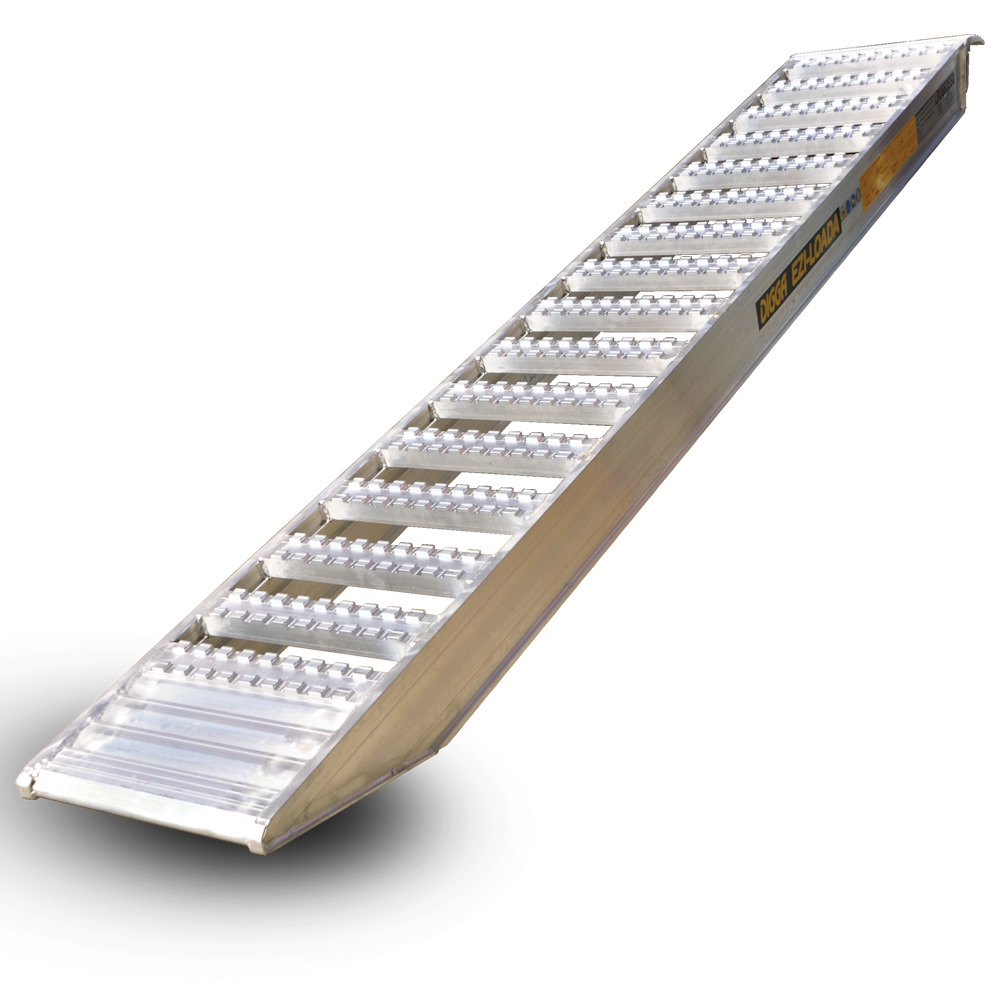

Universal Loading Ramp
- Superior strength, versatility, and safety
- The first dual purpose loading ramp available for rubber, steel tracked, and wheeled machines
- Patented, studded rungs are machined from a solid, not hollow extrusion, minimising slip or loss of grip during the loading/unloading activity
| Universal Range | Capacity @ Wheelbase | Length |
|---|---|---|
| LRU593550 | 6.2 tonne @ 2.0 m | 3500 mm |
| LRU663550 | 7.0 tonne @ 2.0 m | 3500 mm |
| LRU823550 | 9.0 tonne @ 2.0 m | 3500 mm |
The Digga Ezi-Loada ramps are built to last and will get the job done for years to come.
