Specs
- ATM: 8 Ton – 12 Ton
- Tare Weight 3400kg – 3800kg (depending on configuration)
- Carry Capacity up to 8 Ton
- Laser Cut Sides
- 5mm Checker Plate Floor
- UB Chassis Rails
- Fabricated Drawbar 1500mm Long
- In Drawbar Toolbox
- In Floor Rear Toolbox
- BiAlloy Tiedown Points x 12
- Side Tiedown Bars with Stainless Steel Surrounds
- Full Length Coming Rail
- Deck Length 5.0m
- Beavertail Length 1.2m
- Overall Length 8.5m

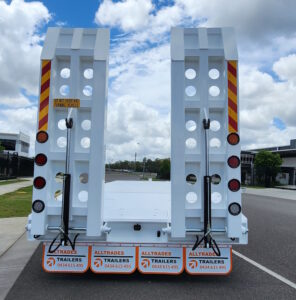

- Hydraulic Rear Ramps 750mm Wide X 2400mm Long Checker Plate 5mm
- Hydraulic Front Landing Leg
- Rear Stabiliser Legs Drop Down
- Hydraulic Rear Stabiliser Legs (optional upgrade)
- 24 Volt Hydraulic Power Pack
Features
- ABS or EBS Available
- 127mm Bartlett Bar or Pintle Ring
- Bartlett Safety Chains
- Abs Trailquip Axle and Spring Kit
- 12/24 LED Lighting Countersunk Side Lights
- 12/24 LED Rear Flush Mount Lights in Ramps
- 175 Amp Anderson Plug with 24Volt Battery System
- Polished Alloy Wheels
- Spare Wheel and Carrier (Polished Alloy)
- Polished Water Tank
- Full Width Rear Mudflaps
Optional Extras
- Attachments Racks
- Custom Paint Colours
This trailer is manufactured from all Australian Steel supplied by Orrcon Steel and manufactured from start to finish in our Facility in Luscombe.
